Portable Solar Panel for Power Station Foldable
Portable Solar Panel for Power Station Foldable 100W Solar Panel for Camping Hiking Off Grid Living Monocrystalline Folding Panel Solar with 5V USB 18V DC Output
Send Inquiry service@iacetop.com.cnTechnical Parameter
| Maximum power at STC(Pmax) | 60W | 100W | 150W | 200W |
| Optimum Operating Voltage(Vmp) | 18V | 18V | 18V | 18V |
| Open-Circuit Voltage(Voc) | 21V | 21.2V | 20V | 20V |
| Optimum Operating Current(Imp) | 3.3A | 5.55A | 8.3A | 11A |
| Short-Circuit Current(Isc) | 3.6A | 6A | 9A | 12A |
| Power Tolerance | ±3% | ±3% | ±2.8% | ±2.5% |

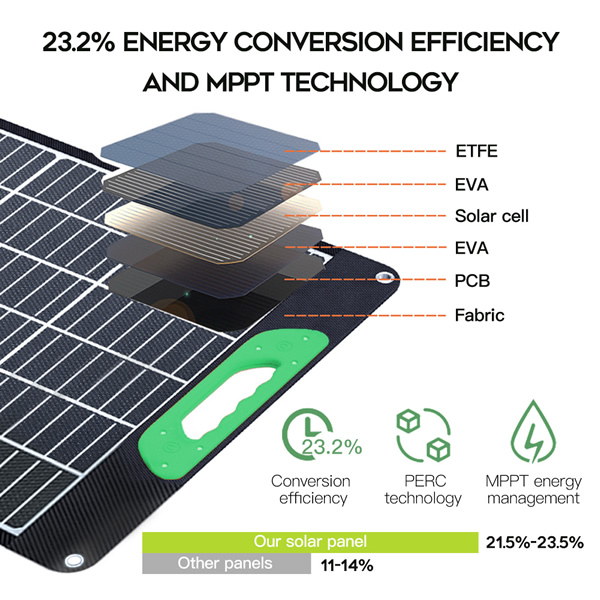

| Cell Efficiency rate | 23.2% | 23.2% | 23.2% | 23.2% |

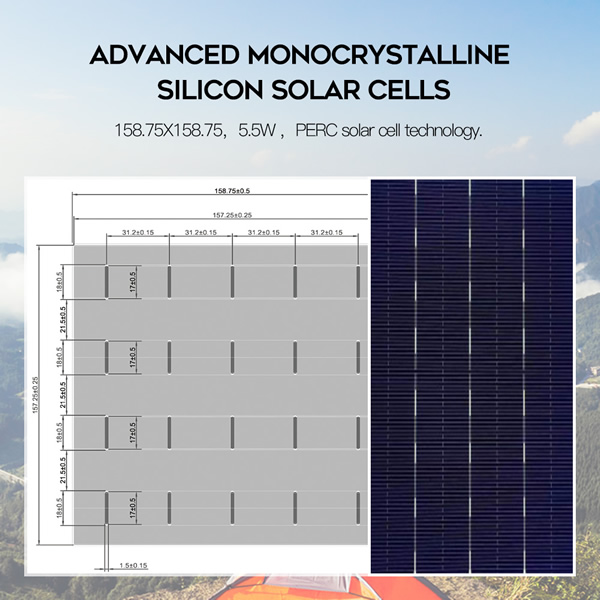

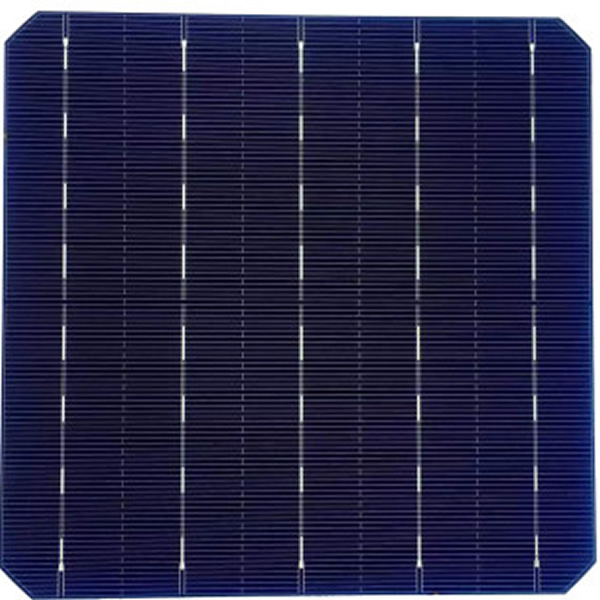

| Solar cell Type | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W | Monocrystalline silicon cell,Mono 158.75*158.75mm , 5.5W |

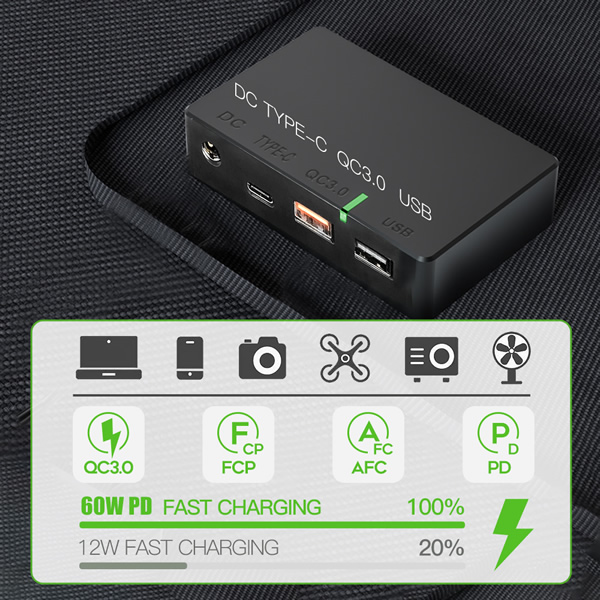

| 0utput Interface |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/3A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/5A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/8A Max |
USB2.0
(5V 3A ) QC3.0 (5V3.4A / 9V2.5A / 12V2A ) PD( 5V/ 9V/ 12V/ 15V ,3A ) DC 18V/11A Max |
| Protection System | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity | Overvoltage, short circuit, overcurrent, power, overload, temperature, overcharge, reverse discharge, static electricity |
| Sealing process | ETFE | ETFE | ETFE | ETFE |
| Operating Temperature | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ | -40℃ to +85 ℃ |
| Bag material | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS | 600D Oxford cloth , ABS |
| Junction Box | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof | Ip65 Waterproof |
| Open size | 830x520x16mm | 1177*520*16MM | 1955*508*16MM | 2300*530*16mm |
| Folding size | 520x415x30mm | 590*520*30MM | 540*508*50MM | 630*530*50mm |
| Net weight | 2.7KG | 3.7KG | 6.1KG | 6.5KG |
| OEM service | Can be customized Fabric color, Handle color, Power, Voltage, Size, Junction box, Connector, Packing box | |||
